产品简介
General description 概述

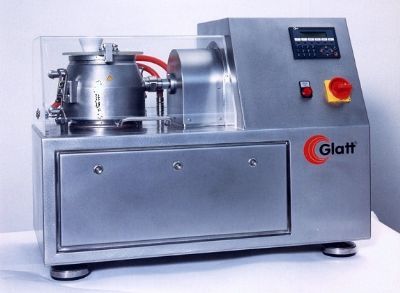

The Table Mixer from Glatt(TMG) serves for mixing and wet granulation of small product amounts in laboratories.
GLATT高速台式湿法制粒机（TMG）主要用于实验室小规模湿法混合制粒。
The powdery material will be set in a three-dimensional spiral motion by means of a high-speed rotor that is located at the bottom of the processing vessel.
锅体底部安装的高速搅拌桨，可保证粉末物料以三维螺旋状方式运动。
By means of exchangeable vessels at volumes of 1 to 6 liters a wide range for product tests and development is available.
配备1至6L可更换锅体，适合制备各种产品。
Technical Date：
| Dim. | Laboratory Unit | |||||
| Tabletop Mixer Granulator TMG | ||||||
| working vessel | Gross volume | dm3 | 1 | 2 | 4 | 6 |
| Working volume | dm3 | 0.3-0.8 | 0.5-1.6 | 0.8-3 | 1.2-4.5 | |
| Rotor diameter | mm | 170 | 190 | 210 | 230 | |
| Drive systems | Rotor speed(stepless) | r.p.m | 50-1000 | |||
| Motor power | kw | 1.1 | ||||
| Chopper speed(stepless) | r.p.m | 300-3000 | ||||
| Dimensions Weights | Length | mm | 900 | |||
| Height | mm | 675 | ||||
| Width | mm | 515 | ||||
| Weight(unit empty) | kg | approx.140 | ||||
